Laugh Quest for the Ultimate/Affordable TSX Short Shifter

The quest for the ultimate/affordable TSX short shifter.

For many years now I have been waiting for a company to come out with a full short shifter solution for our cars, something that uses the OEM plastic base, and just changes out the shifter. It would be more economical for the manufacture, a higher quality for the buyer, and it would use the dependable plastic OEM base. The Mugen version is an inch shorter by the knob, and does not change the leverage points, and the price is ridiculous. The CT one could come loose, and I just don’t plain trust no set screws and glue, and again expensive for what you get. My background is mechanical engineering and I have the CAD/CNC tools to do most custom projects, so on I went with this one.

To start I took my shifter assembly out of the car and studied it for a bit. I found the design to be simple and impressive. The engineering that went on this piece was high quality, simple designed, and cheap to produce. I took a few key points off it and moved on. Next was the measuring of the part using high end Starett comparators. The bottom tip of the shifter was of most importance as the plastic ball that goes over it needs to roll smoothly. Another key measurement is the big center ball that the shifter uses as its central leverage point. With my measurements taken and rechecked I moved on to machining open the OEM shifter.

First I noticed that the back end of the central ball was pressed in. The spidering effects and the dimple gave it away. This is what Honda used to attach the ball to the shifter. Simple and effective!

To release some pressure off the dimple and to slide the ball off easier I center drilled the center of the dimple out. As this point would usually have the most clamping pressure.

Next I moved on to drilling the dimple out, and pressing the ball off the shaft.

What I discovered was again impressive. This hole time I thought the dimple is what kept things intact, but I was wrong. This is where research pays off as I realized that sideways motion could loosen up the pressing. Honda used straight cut knurls on the shifter and ball. When mated they allow each other to pass through each others channel to stop sideways motion.

Next was the designing stage. The curve in the shifter that Honda puts in our shifters is for ergonomics reasons that I can’t explain. The curve makes the shift knob be about .200” away from the driver. If anything you would want the knob to be closer to you, especially when shifting into 5th and 6th. Think about the EG/DC shifters and how they curved back towards the drivers hand for closer shifting. This design might be an inherited design from the JDM cousin that they were too lazy to change. Worried about how it would stick out I ran to the car with an assembled straight bar and the OEM ball. I could not tell at all. Put the center consol back on, and the shifter looked straight and right in the center. Mugen users can verify this as well.

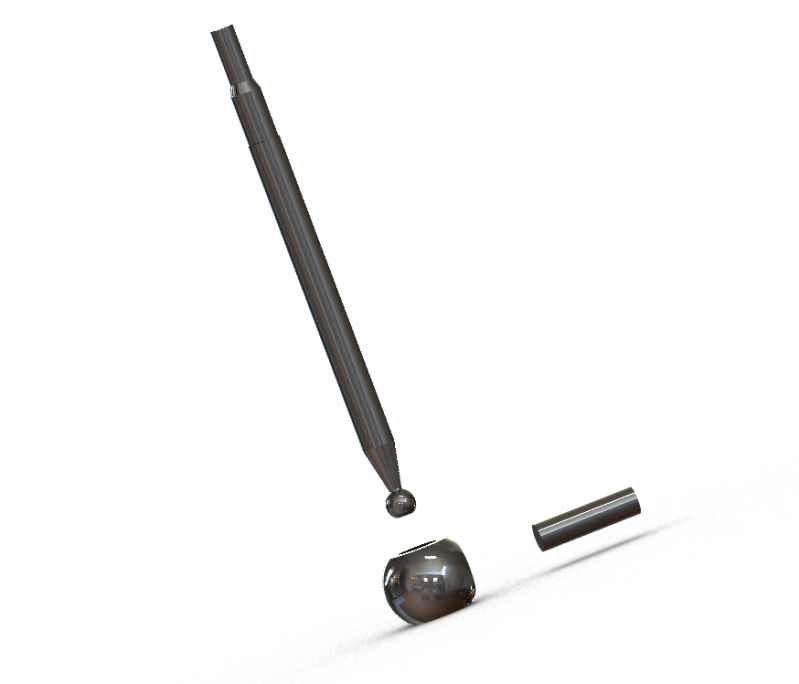

My design is a 3 piece 303SS assembly that will be either tig welded or laser welded together. Here shown before assembly
Here shown after all welded together and ready to replace the OEM piece.

The next stage was important. Using GibbsCam, I used the CAD files I designed earlier to program the path of the CNC. With the help from a machinist/friend at work we got the thing ready to roll.

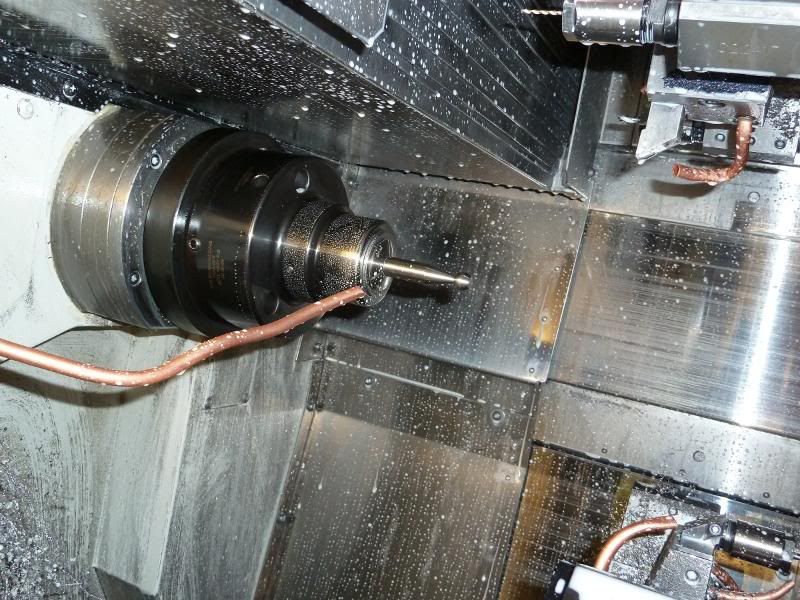

After the programming we prepped the CNC and loaded the first bar in the chuck.

After running the CNC the finished product looked like a beautiful part. Measuring confirmed that we were within .0001”. Amazing!
Here is a little clip I shot of the CNC running.

Overall 3 test pieces are made. The back end will be done shortly then I can move on to the ball and side lever.

More to come of the finished product! This was done to generate some interest in the TSX/Accord community in the mean time, and get some feedback to whether this is a wise choice to put this product in production.

Thanx for looking. Bardi.


As of 12/13/13 I have decided to put the scattered information on this thread on the first page. The web pages below are two very well written installs by two forum members. Please use these instructions to install the shifter:







https://www.tsxclub.com/forums/1st-ge...t-shifter.html

http://c.winterrowd.homedns.org/tsx/...ter/index.html


12/23/13
Just a little clip and instructions on how to install the new hardware:
1-Lightly coat the body of the shoulder bolt with grease (It helps spin inside the hole better when you shift).
2-Make sure no grease ends up on the threads of the shoulder bolt. Clean threads with alcohol asap if this happens! Appling blue/red thread-lock on the threads is recommended if you have some, but not necessary.
3-Coat washer and mating pocket of plastic crank arm with grease.
4-Tighten as video shows.


Last edited by awoc; 12-24-2013 at 02:16 PM.
awoc is offline
Sponsored Links
Advertisement

post #2 of 842 (permalink) Old 04-05-2011, 09:44 PM
Staff: Rank 2
Chief SuperModerator
Marketplace
TOTM 2010

tekneek's Avatar

Join Date: Mar 2006
Posts: 5,412

iTrader: (2)
impressive work
tekneek is offline
post #3 of 842 (permalink) Old 04-05-2011, 09:48 PM
cYn
Staff: Rank 2
Chief SuperModerator
Info Center / Car Care & DIY
TOTM 2014

cYn's Avatar

Join Date: May 2009
Location: SoCal 714
Posts: 5,036

iTrader: (9)
Definitely some impressive work

- Experience is what you get when you didn't get what you wanted. - Unknown
- I've missed more than 9000 shots in my career. I've lost almost 300 games. 26 times, I've been trusted to take the game winning shot and missed. I've failed over and over and over again in my life. And that is why I succeed. - Michael Jordan
- The military don't start wars. Politicians start wars. - William Westmoreland
- Older men declare war. But it is the youth that must fight and die. - Herbert Hoover
- The secret recipe to great tasting food is hunger. - Unknown
- The key to immortality is first to live a life worth remembering. - Bruce Lee
- If I have seen further, it is by standing on the shoulders of giants. - Isaac Newton
- Experience is a hard teacher. She gives the test first and the lessons afterwards. - Unknown
- Always look at how far you have come rather than how far you have to go. Always count your blessing, not what you are missing. - Unknown
- If you don't like something, change it. If you can't change it, change the way you think about it. - Unknown
cYn is offline

post #4 of 842 (permalink) Old 04-05-2011, 10:48 PM
Registered Member

Join Date: Oct 2004
Location: South Jersey
Posts: 976

Send a message via AIM to PrecyseStylez Send a message via Yahoo to PrecyseStylez
iTrader: (6)
Top notch.. I'm in to see the final product. I think this would be a nice product to introduce since there aren't enough choices out there.

Hytech Full Exhaust 12.5:1 Compression~BluePrint Stg3 Cams~K-Pro 275whp-207wtq Professionally Tuned by Derek @ InnovativeMotorWorks
PrecyseStylez is offline
post #5 of 842 (permalink) Old 04-05-2011, 10:52 PM
Registered Member

Join Date: Mar 2010
Posts: 298

iTrader: (1)
Great job! I'm definitely interested
adamlee05 is offline
post #6 of 842 (permalink) Old 04-05-2011, 10:53 PM
Registered Member

JTrix215's Avatar

Join Date: Feb 2011
Location: illadelph
Posts: 1,046

iTrader: (5)
I love engineering even though I'm not an engineer. Also love starret tools haha. I am interested to see how this comes out. I can be considered still new to the TSX community but I feel the stock shifter is truly amazing compared to other manuals in other cars I have driven. I feel it is positive and for the most part direct. Whether that is due to the shifter or transmission I really don't know. I am interested in your review once this is completed.
JTrix215 is offline
post #7 of 842 (permalink) Old 04-05-2011, 10:59 PM
Staff: Rank 1
Administrator
TOTM Coordinator
TOTM CoordinatorTOTM 2012TOTM 2011

Mayuga's Avatar

Join Date: Aug 2008
Location: Southern California
Posts: 6,858

iTrader: (61)
I would pick one up.
Mayuga is offline
post #8 of 842 (permalink) Old 04-06-2011, 12:47 AM
Clutch Dump of Death!!!

Join Date: Apr 2007
Location: Great State of TX!
Posts: 830

iTrader: (3)
nice research and impressive work thus far. I would be on board IF your R&D yield a positive outcome over the well designed stock pieces.

'04 CGP 6MT Non-Navi

Kelford Kmod Hondata Weapon-R MagnaFlow P2R NST Ingalls

Quaife Exedy Comptech Progress Eibach Tokico Wicked Cusco
ATX-TX Speed is offline
post #9 of 842 (permalink) Old 04-06-2011, 02:11 AM
Registered Member

Join Date: Dec 2008
Location: St. Louis
Posts: 604

iTrader: (0)
In for the second gen piece.

I had a pspec shifter in my 97 lude, and my 98 accord, sweet pieces of machinery.
Jeremiah is offline
post #10 of 842 (permalink) Old 04-06-2011, 07:40 AM Thread Starter
Bardi

awoc's Avatar

Join Date: May 2007
Location: Manchester, New Hampshire
Posts: 1,344

Garage
iTrader: (15)
Quote:
Originally Posted by Jeremiah View Post
In for the second gen piece.
.
I would like to but I need a test vehicle.

Thanx all for the positive comments. I plan on having a few trusted members on the board try these for a week and their review.
awoc is offline
post #11 of 842 (permalink) Old 04-06-2011, 08:24 AM
Registered Member

a2dadamm's Avatar

Join Date: Feb 2009
Posts: 895

iTrader: (3)
Sick!

Will it also sit lower than the stock shifter?
a2dadamm is offline
post #12 of 842 (permalink) Old 04-06-2011, 11:06 AM Thread Starter
Bardi

awoc's Avatar

Join Date: May 2007
Location: Manchester, New Hampshire
Posts: 1,344

Garage
iTrader: (15)
^ Yes. Right now thinking about 1/2"
awoc is offline
post #13 of 842 (permalink) Old 04-06-2011, 11:51 AM
Registered Member

Join Date: Jul 2008
Location: Toronto, ON
Posts: 2,790

iTrader: (1)
I'm definitely interested as well.
2K6TSX is offline
post #14 of 842 (permalink) Old 04-06-2011, 12:18 PM
Registered Member

k24accord si-r's Avatar

Join Date: Oct 2009
Location: City Of AngELs & cOnstAnt DanGeR
Posts: 93

iTrader: (0)
i wouldn't mind testing that for the "accord community"
k24accord si-r is offline
post #15 of 842 (permalink) Old 04-06-2011, 01:36 PM
-

Join Date: Jun 2009
Location: Calgary, Canada
Posts: 1,553

iTrader: (9)
I agree that every manual trans TSX needs a short shift kit as 1 of the 1st mods.

When I 1st started researching, I too thought the CT shifter stub that installs with set screws was kinda mickey mouse but I have never heard of anyone having trouble with it.

Nice approach to the problem & nice solution. Thanks for posting all the pics too..

2006 PWP TSX, 6MT. Wifey's daily driver.

CT short shifter. Hondata reflash. RSX-S underdrive crank pulley. M3 lip, debadged.
DIY CAI/K&N filter. DIY exhaust (both resonators removed). Progress 22mm RSB.
Summer: 17x7.5, ET50mm Sport Edition's. 225/50ZR17 BFG Super Sport A/S.
Winter: 16x6.5, ET45mm OEM RSX. 195/65R16 Nokian winter radials.

Last edited by CalgaryTSX; 04-06-2011 at 01:36 PM. Reason: typo.
