[Aragrev7]

I was just going to switch out clutch hoses and I noticed this:

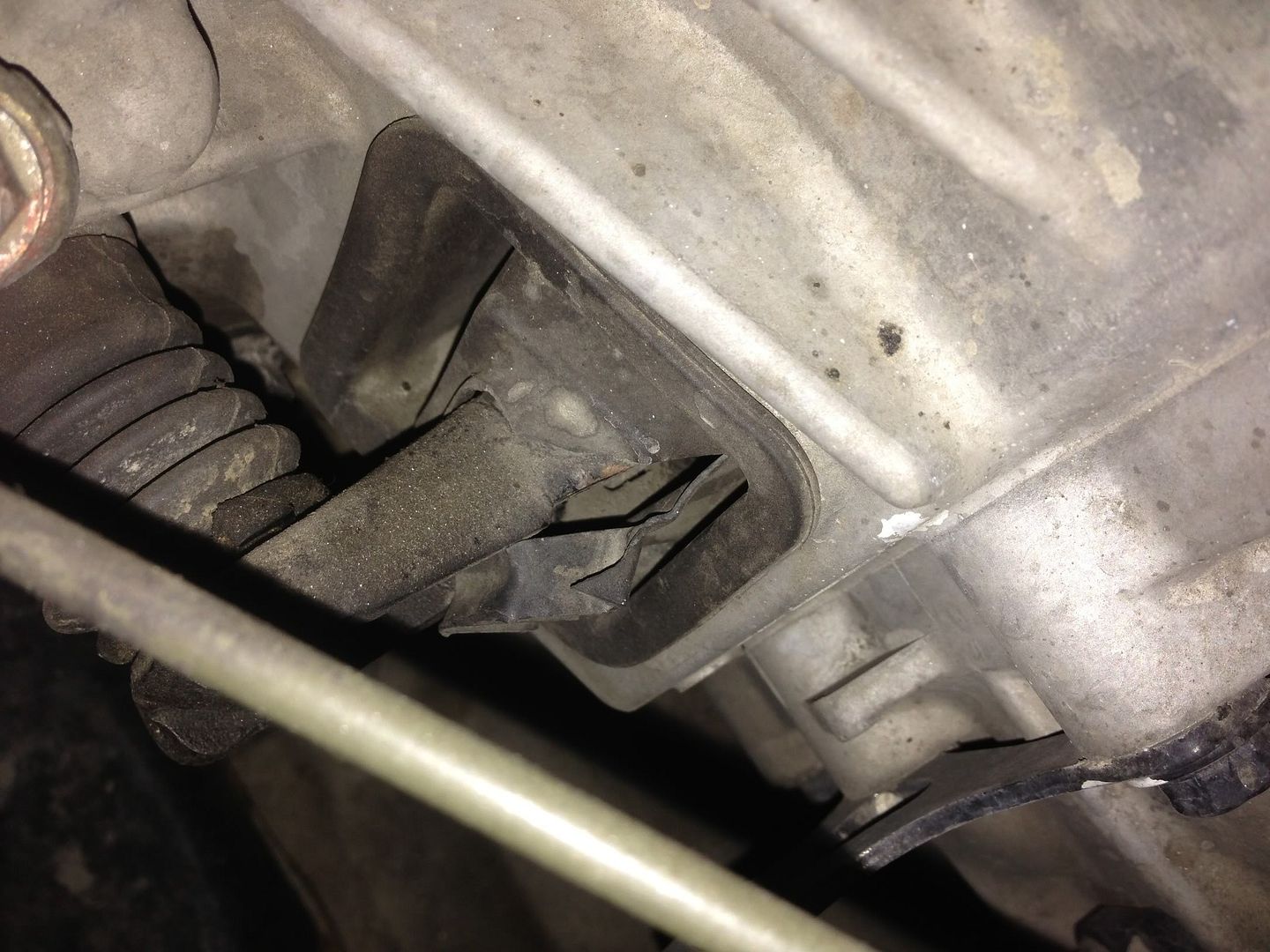

It looks like the rubber seal on my release fork is broken open!! Does anyone know the repercussions of something like this?
Not sure exactly what this is sealing in. Should I throw some grease into there? I imagine its dried out in there :/


Sent from AutoGuide.com App



[Aragrev7]

Oh nuts I found where autoguide hides the problem/fixes section


Sent from AutoGuide.com App



[cYn]

where's the picture?



[asselin.jerome]

If you are talking about the seal where the slave cylinder presses the fork, it is normally not sealed tight but, not ripped open. Hope this helps. J~

Sent from AutoGuide.com Free App



[Aragrev7]

Pic added


Sent from AutoGuide.com App



[adamlee05]

It does nothing other than help keep water out/clutch dust in. Just remove your slave cylinder and replace the boot.

Part #6 in diagram.
22841-PPP-000 "BOOT, RELEASE FORK"
About $10.



[cYn]

Yup that's just the clutch fork's boot. You're going to have to remove the clutch slave cylinder like adamlee05 says and slide the new boot on.
