RRC fitting questions and answers.

19167 Views 29 Replies 10 Participants Last post by feuss2, May 25, 2014

K_A_N_O

Discussion Starter · Nov 10, 2012

i know we get alot of questions regardng the rbc and rrc so thought id make this thread as im installing mine now and ill save the link in my signature.

if your installing the J35 Throttle body then youll need to do this with the coolant hoses.
before

after

heres what you need to do with the other hoses

and thats my oil catch can too

you will also need to extend these cables that go the the sensor.

See less See more

5

1 - 20 of 30 Posts

jvillefinest

· #2 · Nov 10, 2012

The vacuum lines your either going to have probably add a 3/8 plug to the manifold or T it into another. The coolant lines, if you don't have any in the throttle you should just tap together.

Sent from my PC36100 using AutoGuide.Com Free App

K_A_N_O

Discussion Starter · #3 · Nov 10, 2012

so if i connect the two together indicated with the red arrows is that how the throttle body bypass works???

EDIT:
i found the TB bypass thread so i answered that question. i just connect them two together

so what do i do with the vacuum line from the front mount?? (first pic)

DeFToNYc

· #4 · Nov 11, 2012

You can do a drawing to see where every pipes connects, in a few weeks was having himself to be installed by a RBC intake manifold, and i like to know it.
Thank you

K_A_N_O

Discussion Starter · #5 · Nov 11, 2012

DeFToNYc said:
You can do a drawing to see where every pipes connects, in a few weeks was having himself to be installed by a RBC intake manifold, and i like to know it.
Thank you

yea i will update the first post when ive sorted it all and a list of parts youl need

DeFToNYc

· #6 · Nov 11, 2012

Thank you man!
Lucky with installation and i hope see soon dyno results

jvillefinest

· #7 · Nov 11, 2012

Remeber to get the thermal throttle body gasket. The stock one will not work, new or not. P2R or hybrid racing makes them. I ordered from hybrid because the same gasket will work w a 70mm tb if I ever decide to run one.

Sent from my PC36100 using AutoGuide.Com Free App

K_A_N_O

Discussion Starter · #8 · Nov 11, 2012

jvillefinest said:
Remeber to get the thermal throttle body gasket. The stock one will not work, new or not. P2R or hybrid racing makes them. I ordered from hybrid because the same gasket will work w a 70mm tb if I ever decide to run one.

Sent from my PC36100 using AutoGuide.Com Free App

yea ive got the P2R gaskets

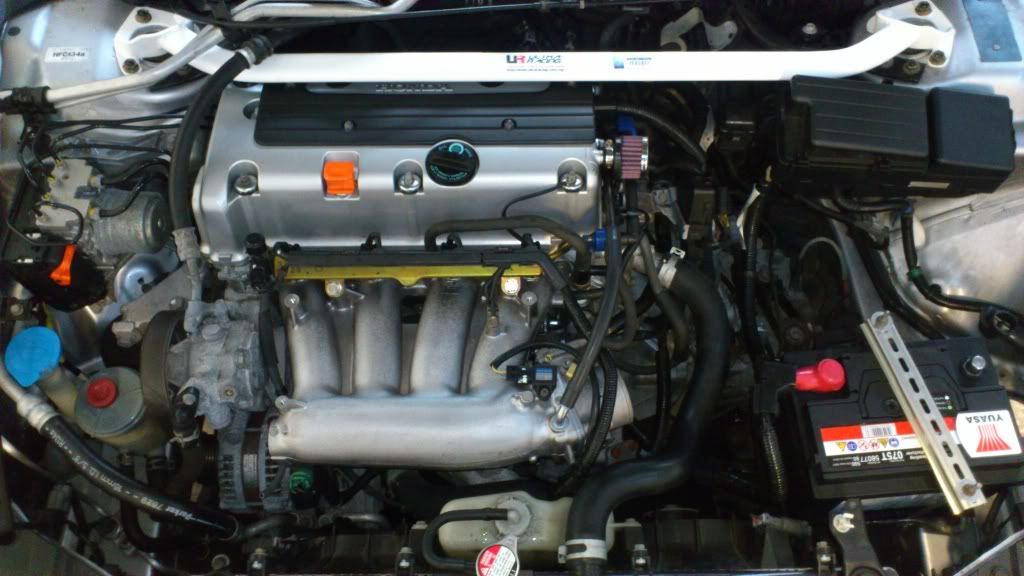

its looks like this today.

just need to get some hose and make up the intake now.

See less See more

jvillefinest

· #9 · Nov 11, 2012

Right on. Good for you, I had to learn it the hard way lol

Sent from my PC36100 using AutoGuide.Com Free App

PrecyseStylez

· #10 · Nov 12, 2012

K_A_N_O said:
yea ive got the P2R gaskets

its looks like this today.

just need to get some hose and make up the intake now.

Mine doesn't look like that..

phorist

· #11 · Nov 12, 2012

why? what is different between this and yours?

K_A_N_O

Discussion Starter · #12 · Nov 12, 2012

PrecyseStylez said:
Mine doesn't look like that..

Why???

Apart from the intake piping not being present.

K_A_N_O

Discussion Starter · #13 · Nov 19, 2012

updated first post

majork

· #14 · Nov 19, 2012

look interesting ... Bookmarked

Rumcyk27

· #15 · Sep 1, 2013

Tell me, what have You done with EGR valve?? Sometimes in my car, when I mounted RBC intake, I see check engine and P0401 error.

978snb

· #16 · Sep 1, 2013

did u clean it ?

Rumcyk27

· #17 · Sep 2, 2013

Yes I did it, but he is coming back, like a boomerang. When I'm picking up to the red line few times, then when I let go the gas pedal. In ON engine is possibility to turn off this valve by software, can I do this same when I have engine on Pb???

978snb

· #18 · Sep 2, 2013

just talked to my friend on the phone my cars at his garage. he said that you need the old sensor of the oem manifold to be put on the new one . he took a pic of what you need to transfer.

See less See more

K_A_N_O

Discussion Starter · #19 · Sep 3, 2013

every sensor i re used.

the only thing i changed was the inlet manifold and throttle body.

all sensors etc i took off and put onto the RRC.

978snb

· #20 · Sep 3, 2013

that on top is the egr on the tsx
