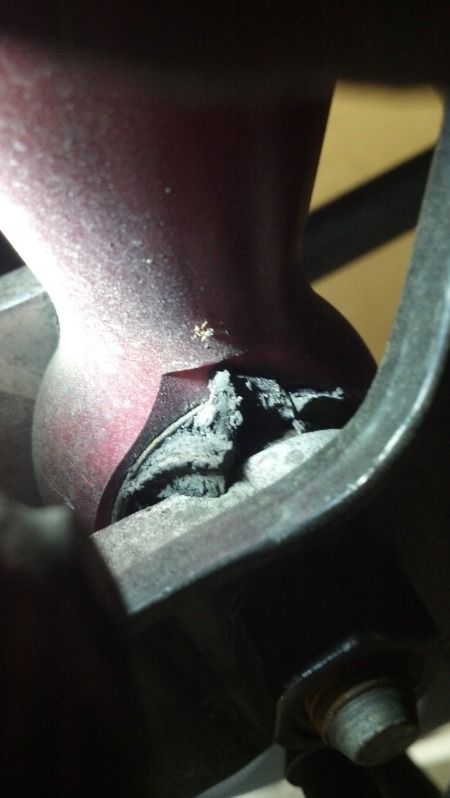

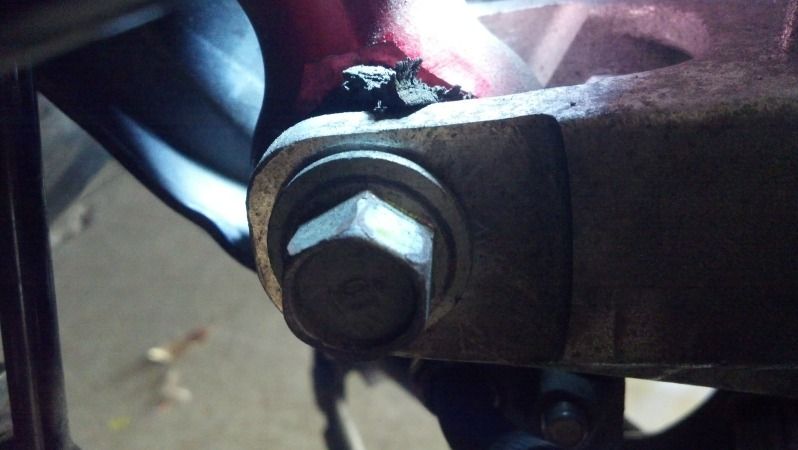

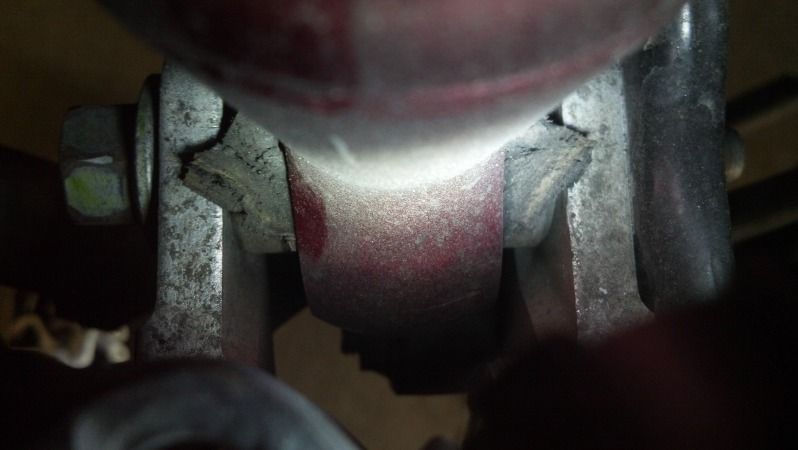

So I started hearing loud clunking noises and every now and then popping sounds coming from my rear suspension. I jacked up the car and checked my endlinks, since they were the culprit last time, but they were all tight and snug. Then I noticed this...

That doesn't look natural to me... what happened? And is this why I'm hearing the clunking and popping?



[din9lebeRrY]

FnF coilovers lol? Looks like the bushing gave out...



[Downshift]

No, they're N+'s.



[CL9 Jon]

No, they're N+'s.

just about generic in quality... sorry to see regardless



[Downshift]

Can I get them replaced?



[din9lebeRrY]

It can be replaced. Though different coils, the procedure should be the same:

Buddy club rsd rear bottom bushing replacement Solution With DIY and many PiCs - Club RSX Message Board



[Downshift]

Thanks man. Doesn't look too bad. He recommends ordering Delrin bushings but they require dimensions in order to fabricate the bushing. Will they be the same for our cars versus the RSX's?



[CL9 Jon]

i would assume so... those coilovers vary only slightly form car to car in general. And since its an Acura compared to an an Acura, with regard to the bushing... you should be fine



[Downshift]

I contacted Buddy Club and they sell the bushings. Luckily their headquarters is located not too far from my house. The tech said there are two types of bushing sizes for the N+'s apparently. One is 38mm in diameter and the other is 43mm. I didn't realize they made two different "types" of N+'s for our car.



[Downshift]

I'm bumping this to the top. Does anyone know the diameter of the N+ bushings? I called Buddy Club and they said they have two sizes for the bushings, 38mm and 43mm. When I measured mine, I came up short at 35mm. I checked and double checked, and I kept get 35mm.



[din9lebeRrY]

I'm bumping this to the top. Does anyone know the diameter of the N+ bushings? I called Buddy Club and they said they have two sizes for the bushings, 38mm and 43mm. When I measured mine, I came up short at 35mm. I checked and double checked, and I kept get 35mm.

Why not take the coil to their headquarters and have them tell you?



[CL9 Jon]

I'm gonna say that 35mm is the 38mm...

...or just buy both and return what you don't need... stop wasting your time



[06tsxtacy]

That's a funny way for that's bushing to go looks like the strut was twisting inside the knuckle



[Downshift]

That's a funny way for that's bushing to go looks like the strut was twisting inside the knuckle

Do you think there was some play between the strut and the knuckle?



[siphor1989]

I think I remember reading that you are suppose to preload the suspension before tightening up that lower strut bolt or else the bushing will bind. Maybe that's why the bushing went? Did you check the other 3 corners for the same problem?



[Downshift]

Yea, I set the preload before I installed them. I don't think the front coilovers have bushings.



[siphor1989]

I don't mean preloading the coilovers. You're suppose to load the suspension by jacking up the knuckle, then you start tightening up the bolts. The bushings in the front are on the lower control arm



[Downshift]

Yea, I'm pretty sure I did that. Sorry, just thinking out loud right now, but the coilover naturally sits too high to fit into the knuckle right? I would've had to have jacked the knuckle up in order to fit the bolt in. Is there another way I could've done it wrong?



[06tsxtacy]

Did you torque the bolt? I'm thinking either that strut was twisting around a bit in there or it's over tightened and squished the bushing. I know when I did mine after tightening the lower bolt I could still very slightly twist the strut, so I took a nut and put it on the end of the bolt and tightened that up as well. Basically double nutting the bottom bolt. I then tried to move the strut again and it was tight.
